• REFERENCE STANDARD-IEC:61439-1 & 2,2011, IS:8623
• OPERATIONAL VOLTAGE-Up to 230KV
• OPERATIONAL CURRENT - IP-54
• FORM OF SEPARATION - 2b
• CONSTRUCTION TYPE - Simplex
• DISPLAY - Audio Visual/ Mimic with LED Indicator/Semaphore
• Dead front
• Doors are provided at rear to attend to the equipment/wiring mounted in the dead front & terminated terminals inside
• Panels are provided with internal illumination for facilitating maintenance.

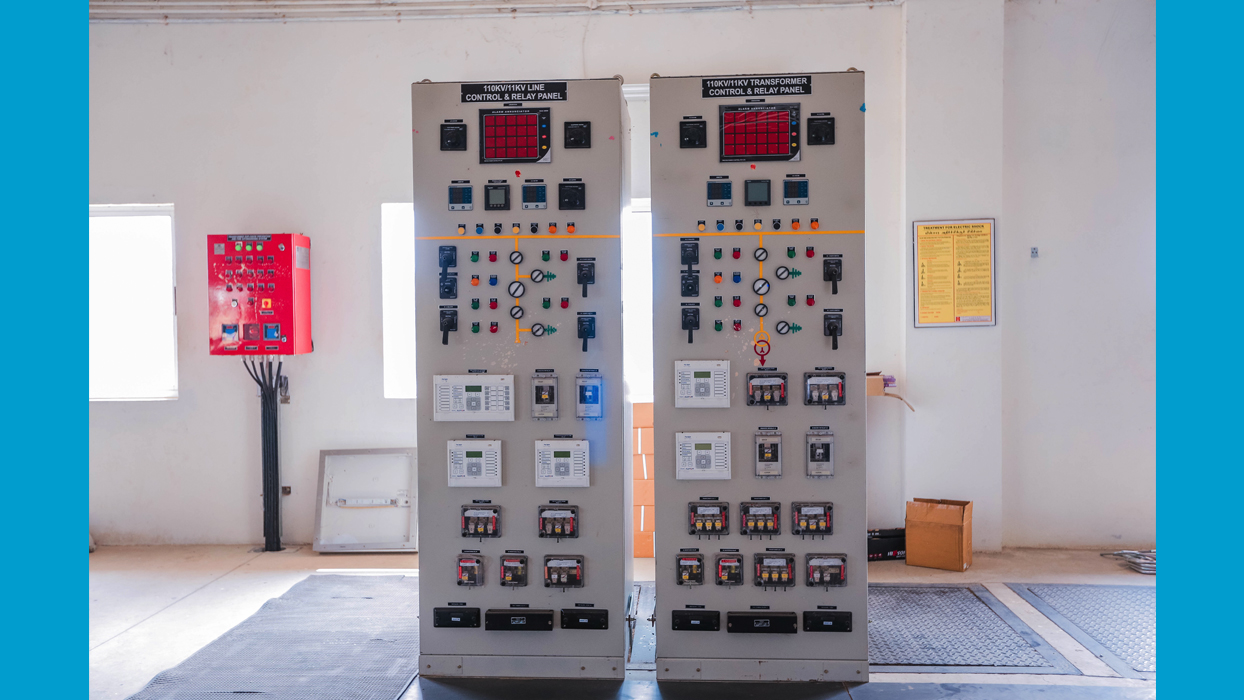

• CRPs are provided with mimic representing the SLD of the system with indication by either semaphore or LEDs for showing the status of Equipment

Application

• Protection & Control of Sub Station
• Switchyard metering and protection involving transformer connected to the system for 11kV / 33kV / 66kV /110 kV/230 kV systems
